Supported Devices

The following devices and databases are supported by the current version of Battery Manager.

Charging devices for rechargeables

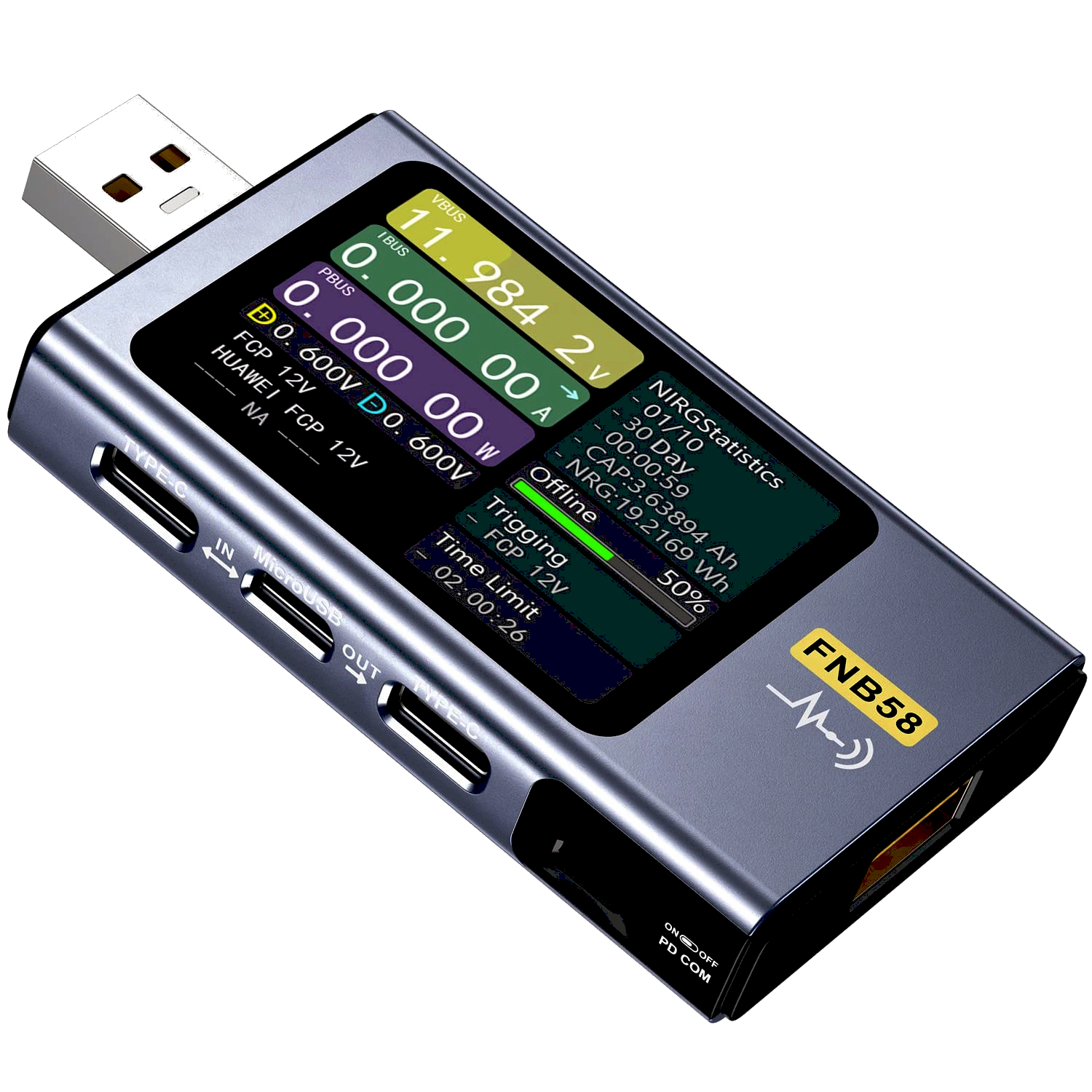

Device	FNIRSI FNB58 USB Tester
Manufacturer	Shenzhen FNIRSI Technology Co., Ltd. (China)
Type	USB tester with digital multimeter
Interface	USB
Remarks	Placed between USB charger and device with integrated rechargeable battery to be measured Measures voltage at USB (V), current (A), and power (W) Integrated 2.0 inch color display Power supply via USB Inputs for USB-A, USB-C, and Micro-USB (chargers) Outputs for USB-A and USB-C (devices with integrated rechargeable battery to be measured) Output for PC (Micro-USB) PC software available USB cable required

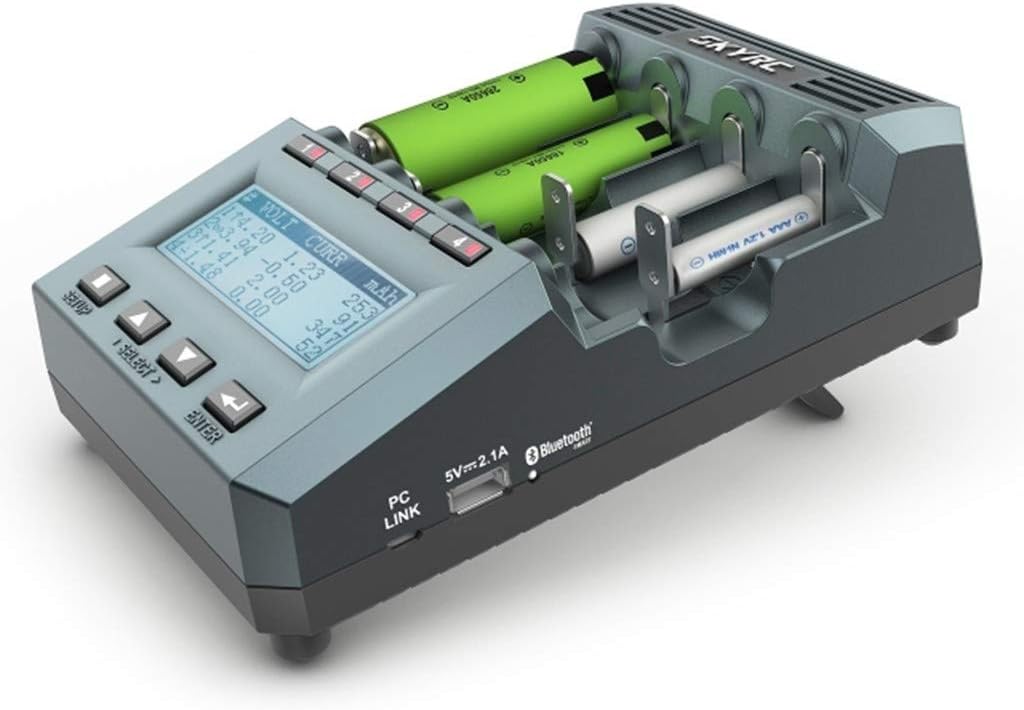

Device	SkyRC MC3000
Manufacturer	SkyRC Technology Co.,Ltd. (China)
Type	Charging device
Interface	USB 2.0 (native)
Remarks	4 slots (round cells only, no 9V) Supports 9 cell types NiMH (1.2V), NiCd (1.2V), NiZn (1.65V), RAM, Eneloop (1.2V), Lilo4.35, LiFePO4 (3.2V), LTO, Lilon (3.6/3.7V) Supports 44 cell sizes from AAAA to 32700 Programs Charge, Refresh, Break_in, Discharge, Cycle, Storage Bluetooth interface provides data for app (iOS + Android) Log interval >= 2 s PC software available USB cable required Internal cooling ventilator (if needed)

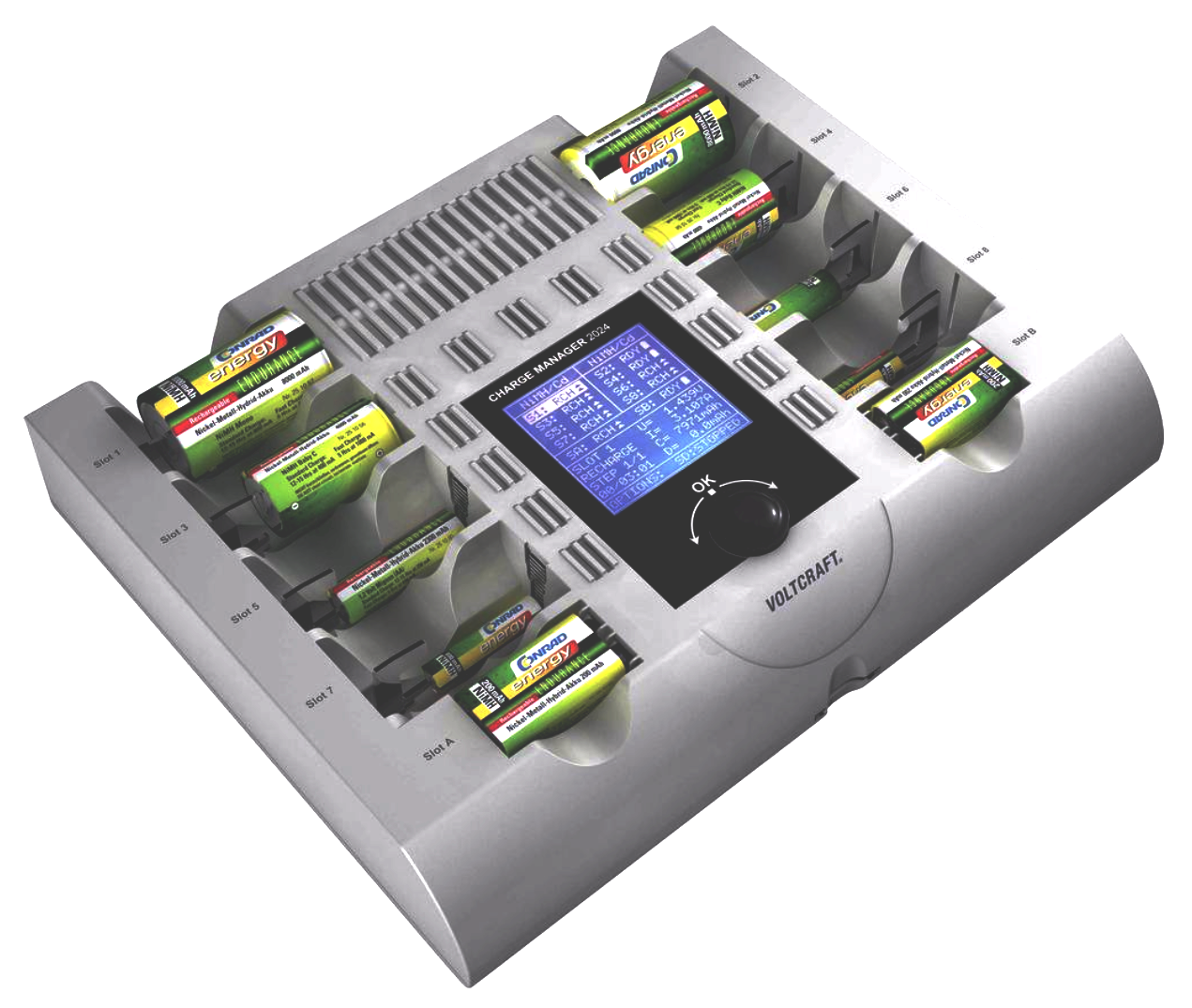

Device	Charge Manager 2024
Manufacturer	Conrad Electronic SE (Germany)
Type	Charging device
Interface	USB
Baud Rate	57600
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	10 slots Programs RCH (RECHARGE), DIS, PCH (PROCHARGE), CYC, ALV, MAX(IMIZE) Log interval >= 2 s PC software available USB cable required Mapped as serial port by separate driver (Silicon Labs CP210x USB to UART Bridge) No internal cooling ventilator

Device	Charge Manager 2020
Manufacturer	Conrad Electronic SE (Germany)
Type	Charging device
Interface	RS-232
Baud Rate	9600
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	10 slots Programs CHA, DIS, CHK, CYC, ALV Log interval >= 2 s Null modem cable required Connecting to USB possible with adapter based on Prolific PL2303 chipset Internal cooling ventilator

Device	Charge Manager 2016
Manufacturer	Conrad Electronic SE (Germany)
Type	Charging device
Interface	USB
Baud Rate	19200
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	6 slots Programs CHA, DIS, CHK, CYC, ALV Log interval >= 2 s USB cable required Internally mapped as COM port (RS-232) by separate driver as Silicon Labs CP210x USB to UART Bridge No internal cooling ventilator

Device	Charge Manager 2015
Manufacturer	Conrad Electronic SE (Germany)
Type	Charging device
Interface	RS-232
Baud Rate	9600
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	6 slots Programs CHA, DIS, CHK, CYC, ALV Log interval >= 2 s Null modem cable required Connecting to USB possible with adapter based on Prolific PL2303 chipset Internal cooling ventilator Problem: performs self-test every 24h (loses programs)

Device	Charge Manager 2010
Manufacturer	Conrad Electronic SE (Germany)
Type	Charging device
Interface	RS-232
Baud Rate	9600
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	4 slots Programs CHA, DIS, CHK, CYC, ALV Log interval >= 1 s Null modem cable required Connecting to USB possible with adapter based on Prolific PL2303 chipset Internal cooling ventilator

Barcode readers for battery identification

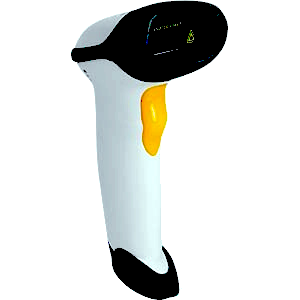

Device	Delock USB Barcode Scanner 1D (light grey)
Manufacturer	Tragant Handels- und Beteiligungs GmbH (Germany)
Type	Barcode reader
Interface	USB (mode for COM port)
Baud Rate	9600
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	Handheld scanner, triggered by button or continuous scanning Supports 1D barcodes™ Data format TEXT/CR Shipped with USB cable COM port mode can be activated by scanning a special barcode once

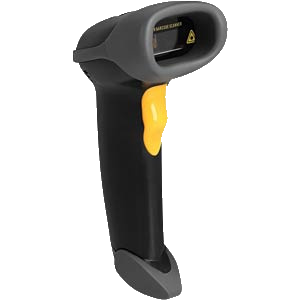

Device	Delock USB Barcode Scanner 1D (black)
Manufacturer	Tragant Handels- und Beteiligungs GmbH (Germany)
Type	Barcode reader
Interface	USB (mode for COM port)
Baud Rate	9600
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	Handheld scanner, triggered by button or continuous scanning Supports 1D barcodes™ Data format TEXT/CR Shipped with USB cable COM port mode can be activated by scanning a special barcode once

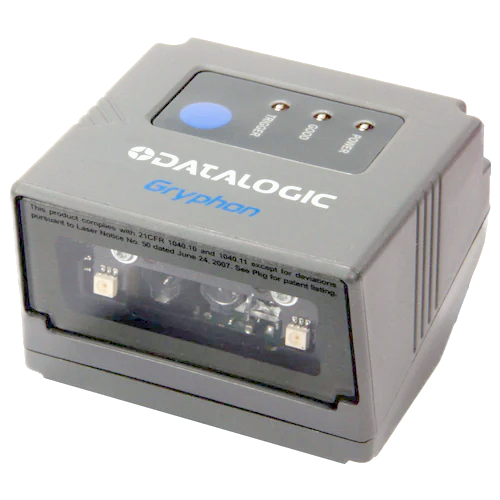

Device	Gryphon GFS4450 RS232
Manufacturer	Datalogic (Italy)
Type	Barcode reader
Interface	RS-232
Baud Rate	9600
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	Built-in scanner, 2D, imager with automatic trigger Supports all standard 1D barcodes incl. GS1 DataBar™ Data format TEXT/CR Shipped with RS-232 cable, power supply needs to be purchased separately Connecting to USB possible with adapter based on Prolific PL2303 chipset

Device	Voyager 9520 RS232
Manufacturer	Honeywell International Inc. (U.S.A.)
Type	Barcode reader
Interface	RS-232
Baud Rate	9600
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Remarks	Automatic laser hand-held barcode scanner Supports all standard 1D barcodes incl. GS1 DataBar™ Data format TEXT/CRLF Shipped with RS-232 cable, power supply, and stand Connecting to USB possible with adapter based on Prolific PL2303 chipset

Power switching devices

Device	Delock WLAN Power Socket Switch (11827)
Manufacturer	Tragant Handels- und Beteiligungs GmbH (Germany)
Type	Power switch
Interface	WLAN
Remarks	1 programmable plug with energy management Total output 2500 W at 230V AC Web interface providing endpoints to switch on/off Preinstalled Tasmota firmware Support for Alexa, MQ Telemetry Transport (MQTT), Domoticz, Home Assistant Chipset ESP8285 No surge protector

Device	Delock WLAN Power Socket Switch (11826)
Manufacturer	Tragant Handels- und Beteiligungs GmbH (Germany)
Type	Power switch
Interface	WLAN
Remarks	1 programmable plug with energy management Total output 2500 W at 230V AC Web interface providing endpoints to switch on/off Preinstalled Tasmota firmware Support for Alexa, MQ Telemetry Transport (MQTT), Domoticz, Home Assistant Chipset ESP8285 No surge protector

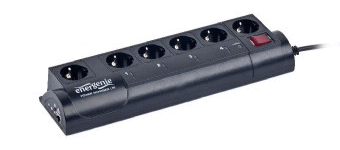

Device	EnerGenie EG-PM2-LAN
Manufacturer	Gembird Europe B.V. (Netherlands)
Type	Power switch
Interface	LAN
Remarks	4 programmable plugs, 2 permanent plugs Total output 2500 W at 230V AC No surge protector

Device	EnerGenie EG-PMS2-LAN
Manufacturer	Gembird Europe B.V. (Netherlands)
Type	Power switch
Interface	LAN
Remarks	4 programmable plugs, 2 permanent plugs Total output 2500 W at 230V AC Includes surge protector

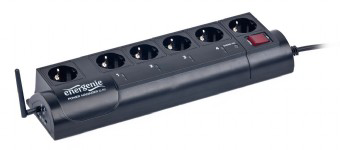

Device	EnerGenie EG-PMS2-WLAN
Manufacturer	Gembird Europe B.V. (Netherlands)
Type	Power switch
Interface	WLAN
Remarks	4 programmable plugs, 2 permanent plugs Total output 2500 W at 230V AC Includes surge protector

Miscellaneous devices

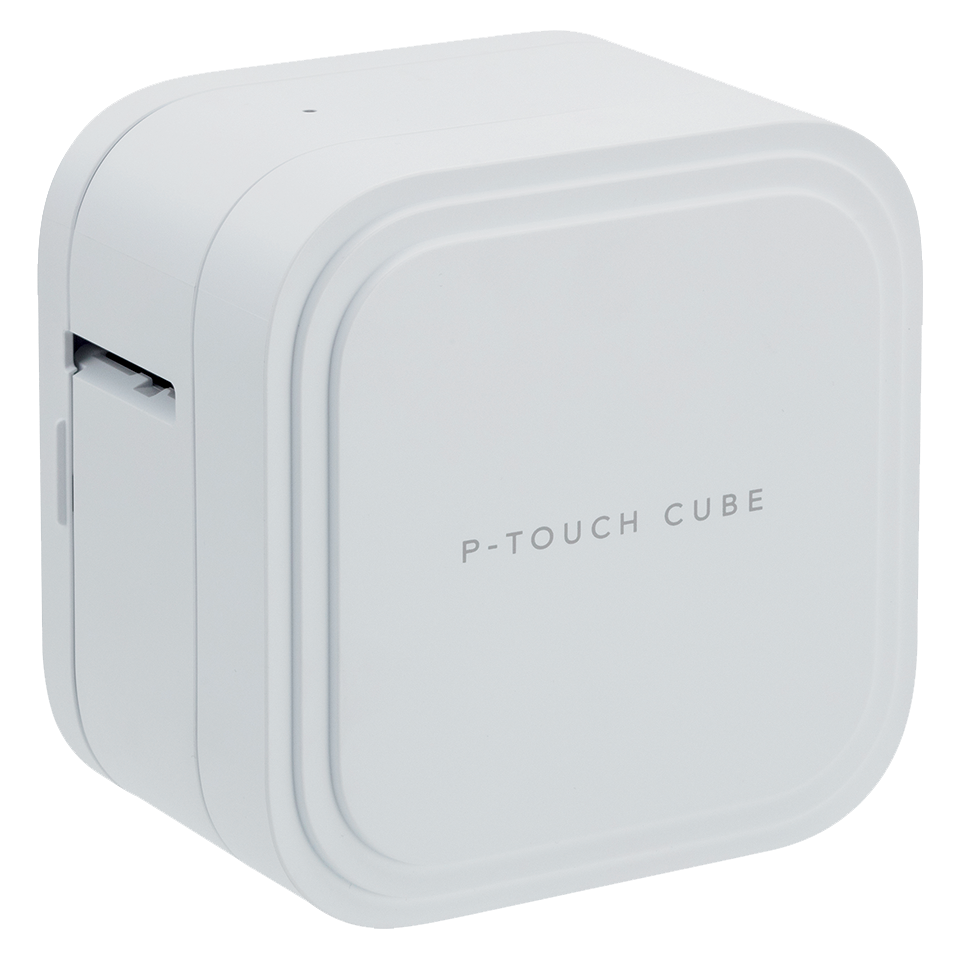

Device	Brother P-touch CUBE Pro (PT-P910BT)
Manufacturer	Brother Industries, Ltd. (Japan)
Type	Labeler
Interface	USB
Remarks	Supports mobile operation via integrated Li-Ion rechargeable battery 360 dpi resolution, thermal printing TZe tapes in the sizes 12/18/24 mm useful for battery barcodes No native USB support, printing via Windows printer driver Shipped with custom software for printing Configurable module width and density in Battery Manager allows for proper scanning

Device	Brother PT-P700
Manufacturer	Brother Industries, Ltd. (Japan)
Type	Labeler
Interface	USB
Remarks	Supports mobile operation via batteries 180 dpi resolution, thermal printing TZe tapes in the sizes 12/18/24 mm useful for battery barcodes No native USB support, printing via Windows printer driver Shipped with custom software for printing Configurable module width and density in Battery Manager allows for proper scanning
